EyeBot
We have developed several generations of small mobile robot platforms which we call 'EyeBot' robots as they integrate a digital camera as their main sensor.
The latest versions are:
- EyeBot32, based on an ESP32 controller
- EyeBot8, based on a Raspberry Pi

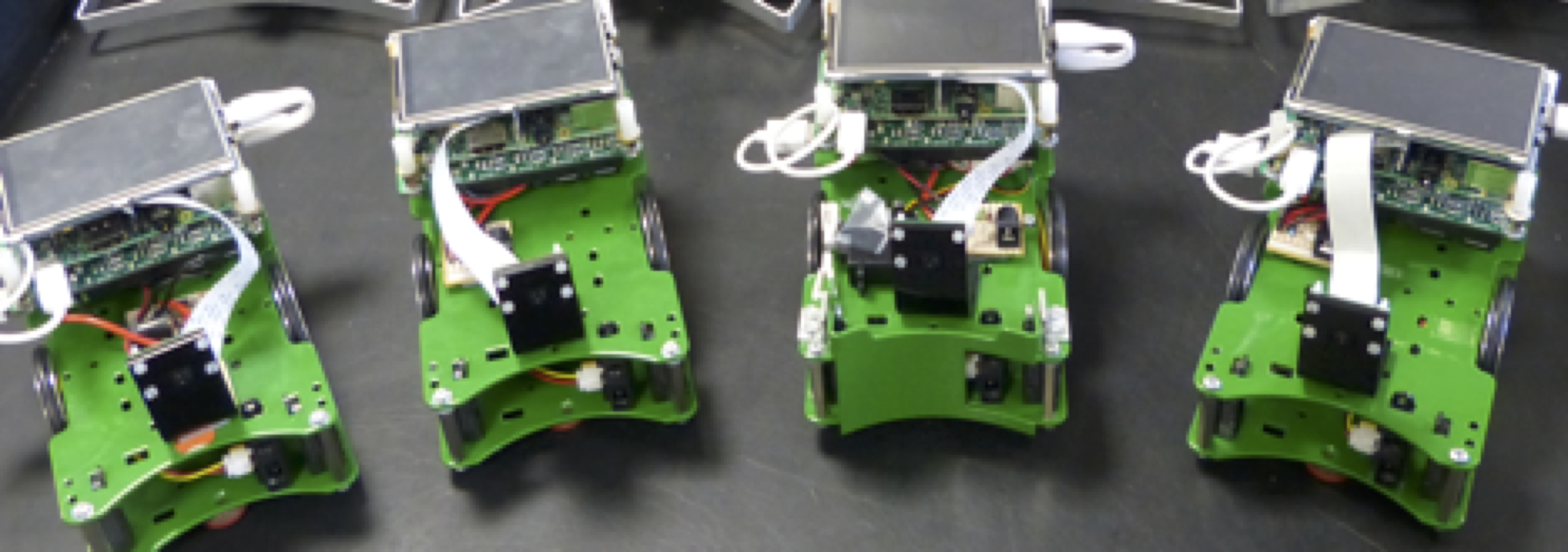

EyeBot 32
EyeBot-32 is our simplest robot platform using two ESP32 controllers,
one just for image processing and one for drive control and display.
Links:
EyeBot 8
EyeBot-8 is a more powerful embedded controller platform
for robotics applications. It combines our embedded I/O board with
numerous I/O lines, linked via USB to a higher-level microcontroller,
such as the Raspberry Pi.

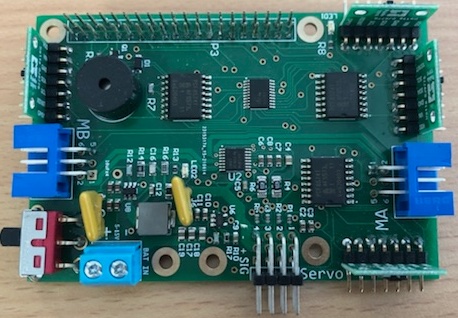

The EyeBot-8 I/O board handles all low-level actuators and controls, while

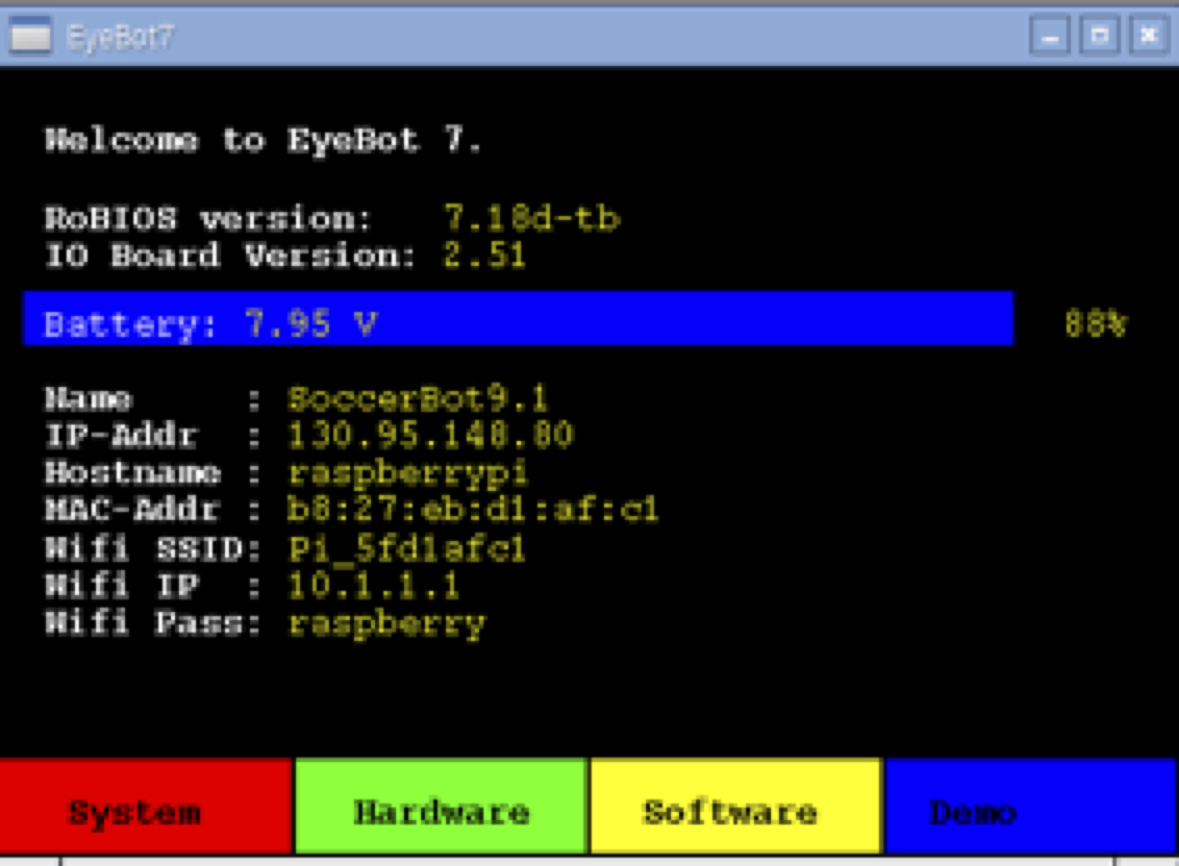

the higher-level controller typically uses a camera and a touch-screen
LCD output. Additional sensors, such as Lidar or IMU can als be connected.
The EyeBot-8 provides:
- 2 Motor drivers outputs
- 2 Encoder inputs
- 4 Servo PWM outputs
- 1 analog inputs
- 4 Pololu distance sensor ports
EyeBot boards can be purchased for USD 80 plus shipping.
Please email
if you are interested.
Besides the versatile hardware, we also developed the powerful robot
simulation system EyeSim.
Links:
Thomas Bräunl, UWA
